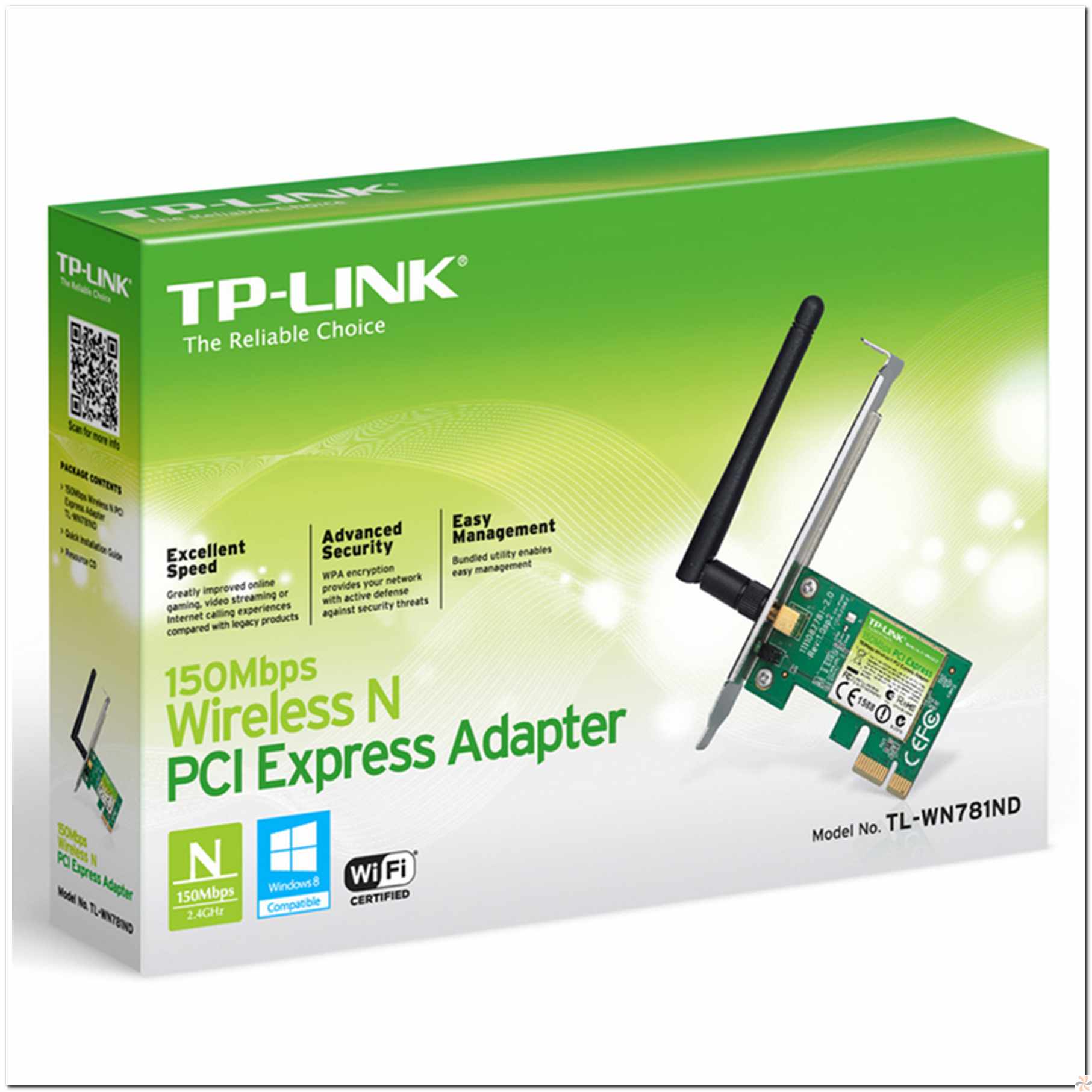

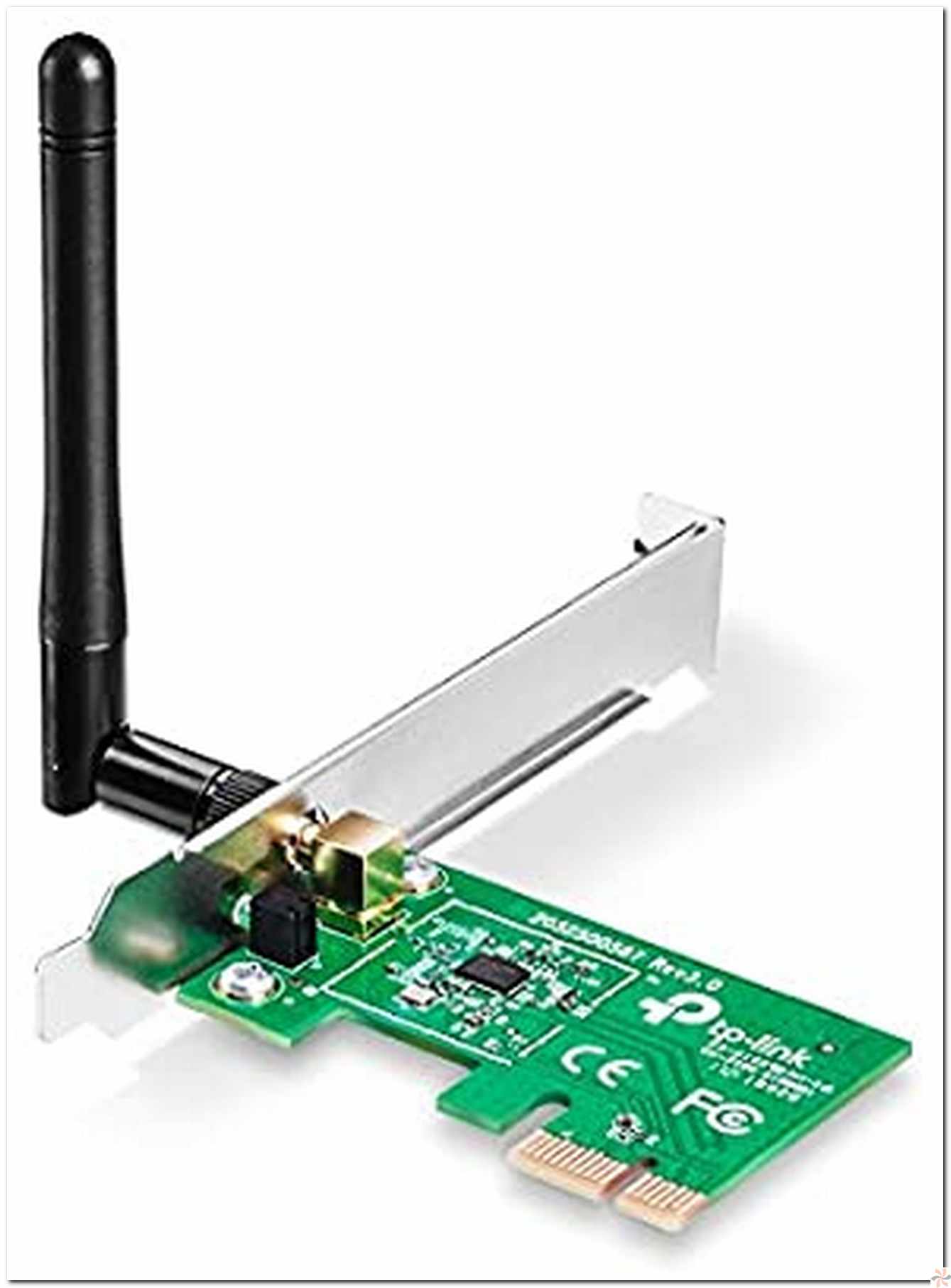

TP-Link TL-WN781ND Wireless PCI Express Adapter

TP-Link TL-WN781ND Wireless PCI Express Adapter

HARDWARE FEATURES
Interface PCI Express
Dimensions ( W x D x H ) 4.8 x 3.1 x 0.8in. (120.8 x 78.5 x 21.5mm)
Antenna Type Detachable Omni Directional (RP-SMA)
Antenna Gain 2dBi
WIRELESS FEATURES
Wireless Standards IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
Frequency 2.400-2.4835GHz
Signal Rate 11n: Up to 150Mbps(dynamic)
11g: Up to 54Mbps(dynamic)
11b: Up to 11Mbps(dynamic)
Reception Sensitivity 130M: -68dBm@10% PER
108M: -68dBm@10% PER
54M: -68dBm@10% PER
11M: -85dBm@8% PER
6M: -88dBm@10% PER
1M: -90dBm@8% PER
Transmit Power <20dBm(EIRP) Wireless Modes Ad-Hoc / Infrastructure mode Wireless Security Support 64/128 bit WEP, WPA-PSK/WPA2-PSK Modulation Technology DBPSK, DQPSK, CCK, OFDM, 16-QAM, 64-QAM OTHERS Certification CE, FCC, RoHS Package Contents Wireless Adapter Detachable Omni directional antenna Resource CD Quick Installation Guide System Requirements Windows XP/Vista/7/8/8.1/10(32/64bits), Linux 2.6.24~4.3 Environment Operating Temperature: 0?~40? (32?~104?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing Warranty Limited 3-Year Warranty For further information on our warranty policy please visit: http://www.tp-link.com.au/support/rma
